一只菜鸡关于《Project NANO》的解谜记录

Real entry

网页关键内容:

<!--哦,我的老伙计,你怎么误打误撞到这里来了。-->
<!--认真告诉你,这里没东西,去研究下那个二维码吧。-->
<div class="inside-qr">
    <p>哦,来了,我的老伙计。</p>
    <p>都来到这里了,肯定不能太难是吧。</p>
    <div class="hint">
        <p>所以我要跟你打包票,这一关的题目真的<strong>只在这个二维码</strong>里面了。</p>
        <p>要不,拆开看看?</p>
    </div>
    <img "https://cdn.jsdelivr.net/gh/hanlin-studio/Media@master/vigen.png" />
    <div class="hidden">
        <a href="https://cdn.jsdelivr.net/gh/hanlin-studio/Media@master/vigen.png">打开这个图片</a>
    </div>
</div>

一个二维码图片。下载下来之后跑一遍 binwalk ,发现里面藏着一个 ZIP 压缩包,压缩包里面有个 README 文件,内容如下:

This is a 5*5 n-Puzzle. Please recover it.

Scramble STEP: JNPSVWVGMKHGMEPAMEYJJXZ

根据提示,可以看出图片是被当作拼图来打乱过的。

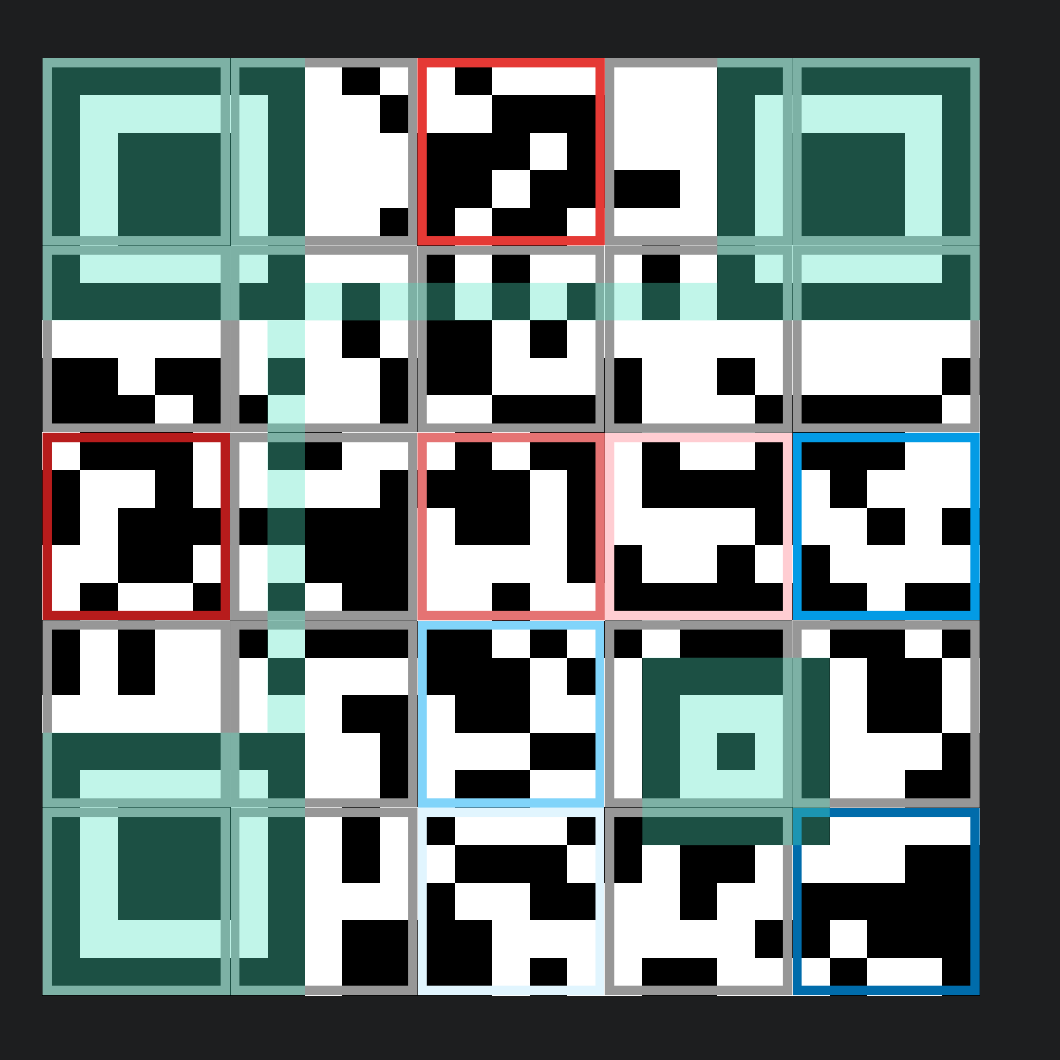

不过我到最后也没想出来这个打乱步骤的提示是什么意思。知道这个图片是被分成 5×5 的小格子,按照 QR 码的格式,能够先手动拼出其中的 17 格。

这里面不能完全确定但是还有些线索的只有右下角的格子:要求第一个像素必须是黑色的。这样在剩余的 8 个格子里面只有 4 个格子是可能在右下角的,其他七个格子肉眼没法看出线索。

有了这些条件,我们可以推测出剩余的可能性有

4\times7!=2\,0160\text{ 种}

于是把上面的图片拆成了 25 个小图片,写了一个简陋的脚本来暴力破解这两万多种可能性。

(至少比 25!=15511210043330985984000000={15\text{\footnotesize秭}5112\text{\footnotesize垓}1004\text{\footnotesize京}3330\text{\footnotesize兆}9859\text{\footnotesize亿}8400\text{\footnotesize万}} 种可能性要好得多。)

from PIL import Image
from itertools import permutations
from pyzbar.pyzbar import decode
p_0_0 = Image.open("0-0.png")
p_0_1 = Image.open("0-1.png")
p_0_3 = Image.open("0-3.png")
p_0_4 = Image.open("0-4.png")
p_1_0 = Image.open("1-0.png")
p_1_1 = Image.open("1-1.png")
p_1_2 = Image.open("1-2.png")
p_1_3 = Image.open("1-3.png")
p_1_4 = Image.open("1-4.png")
p_2_1 = Image.open("2-1.png")
p_3_0 = Image.open("3-0.png")
p_3_1 = Image.open("3-1.png")
p_3_3 = Image.open("3-3.png")
p_3_4 = Image.open("3-4.png")
p_4_0 = Image.open("4-0.png")
p_4_1 = Image.open("4-1.png")
p_4_3 = Image.open("4-3.png")
p_n_0 = Image.open("n-0.png")
p_n_1 = Image.open("n-1.png")
p_n_2 = Image.open("n-2.png")
p_n_3 = Image.open("n-3.png")
p_y_0 = Image.open("y-0.png")
p_y_1 = Image.open("y-1.png")
p_y_2 = Image.open("y-2.png")
p_y_3 = Image.open("y-3.png")
n = [p_n_0, p_n_1, p_n_2, p_n_3]
y = [p_y_0, p_y_1, p_y_2, p_y_3]
fixed = [
    (0, 0, p_0_0),
    (0, 1, p_0_1),
    (0, 3, p_0_3),
    (0, 4, p_0_4),
    (1, 0, p_1_0),
    (1, 1, p_1_1),
    (1, 2, p_1_2),
    (1, 3, p_1_3),
    (1, 4, p_1_4),
    (2, 1, p_2_1),
    (3, 0, p_3_0),
    (3, 1, p_3_1),
    (3, 3, p_3_3),
    (3, 4, p_3_4),
    (4, 0, p_4_0),
    (4, 1, p_4_1),
    (4, 3, p_4_3),
]
left = [(0, 2), (2, 0), (2, 2), (2, 3), (2, 4), (3, 2), (4, 2)]
d = 20
def join_pic(yy, ns):
    dest: Image = Image.new("RGB", (d*7, d*7), (255,255,255))
    for x, y, img in fixed:
        dest.paste(img, (d * (y + 1), d * (x + 1)))
    for coord, img in zip(left, ns):
        x, y = coord
        dest.paste(img, (d * (y + 1), d * (x + 1)))
    dest.paste(yy, (d*5, d*5))
    return dest
def gen_perm():
    for i in y:
        ii = [j for j in y if j is not i]
        ii.extend(n)
        for j in permutations(ii):
            yield (i, j)

for y, ns in gen_perm():
    p = join_pic(y, ns)
    v = decode(p)
    if v:
        print(v)

尝试出来的结果……

python3 test.py
[Decoded(data=b'https://clang.pp.ua/c1An9', type='QRCODE', rect=Rect(left=20, top=20, width=100, height=100), polygon=[Point(x=20, y=119), Point(x=120, y=120), Point(x=119, y=20), Point(x=21, y=21)])]

设计解法:文件名的 vigen.png 提示的是 Vigenère Cipher。用 STEP 当作密钥,JNPSVWVGMKHGMEPAMEYJJXZ 当做密文,可得明文:

RULDDDRRURDRULLLULUUREV

其中:

  • R: right = 右
  • U: up = 上
  • D: down = 下
  • L: left = 左
  • REV 提示「Reverse」,就是反转的意思。具体怎么反转的我也没太仔细研究。(毕竟是暴破出来的。)

按照步骤还原拼图应该就可以了。

(感谢群友 @MiaQAQ 的指点)

Clang

网页主要内容:

<title>./.../.-./---/--</title>
<!-- ... -->
<div id="not-here">
    <p class="what-is-this">这里 和那 里或 许没 什么 关系</p>
    <p><code>1T1023298N757Q13142N10271Q1T1029</code></p>
    <p>或许你需要先看看,嗯,标题。</p>
    <p class="what-is-this">9432bc3b.log</p>
</div>

「日志」内容:

ZeroMe Logs | Mar 27, 2020.
undefined
谜题的出口通向哪里?
来到出口,你抬头看了看门。
忽又想起了 “门上插刀” 这个经典的梗。
刀砸在地上,碎屑溅起来了。
你看了看碎屑,从其中找到了那打开出口的钥匙。
[时序碎片:31 31]
[解锁 丢失的密钥:whereisthefilter]

能够找到的线索:

  • 标题 ./.../.-./---/-- 是摩尔斯电码的 ESROM(Morse 反过来写)
  • 「这里 和那 里或 许没 什么 关系」→两字一组?
  • 1T1023298N757Q13142N10271Q1T1029:不明。
  • whereisthefilter:不是答案,用途不明

「门上插刀」似乎是出题者杜撰出来的一个「梗」。

来自出题团队成员「门上插刀,天上平板,直字拐弯」

看截图来说基本上就是描述日文字形的特点了吧。(是的,同样是汉字,但是不同地方的汉字长得不总是一样的。)
